66' Nova Project the front suspension upgrade

Suspension upgrade update Nov 2008-May 2009 The car now has:

• IDIDIT Steering column (Installed a few years ago)  firewall side pics
• CPP Mini Sub frame,   Rivet removal notes

• Church Boys Rack & Pinion setup
• Church Boys Sway Bar
• Church Boys Steering arms
• Stock style rear sump Oil pan

• CPP Steering stops.    Adapting stops to Church Boys Steering arms.

• SSBC Disc brakes and spindles done in 2005 Install notes

• Alignment specs and definitions


Most everything went on following instructions.  Some pictures.

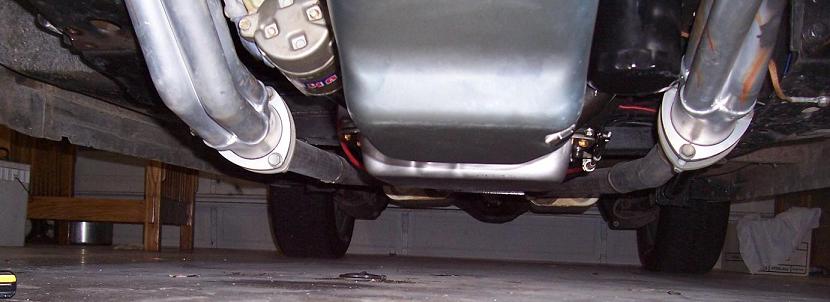

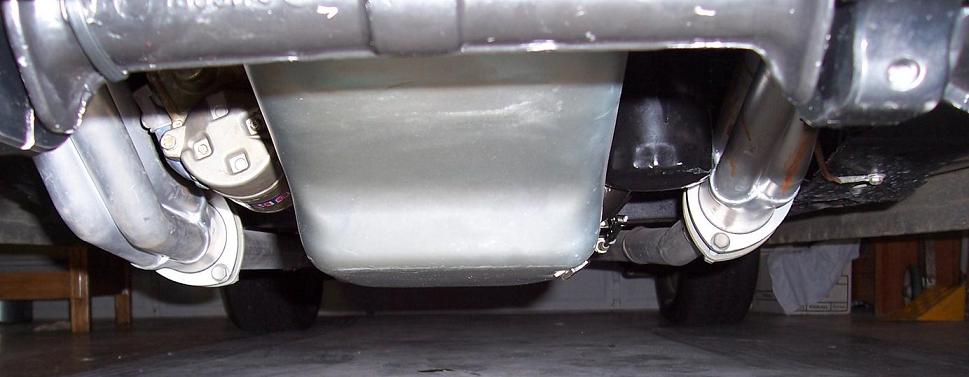

Stock style rear sump pan.  Lots of ground clearance compared to the old notched-rear sump pan needed for stock rear-steer.

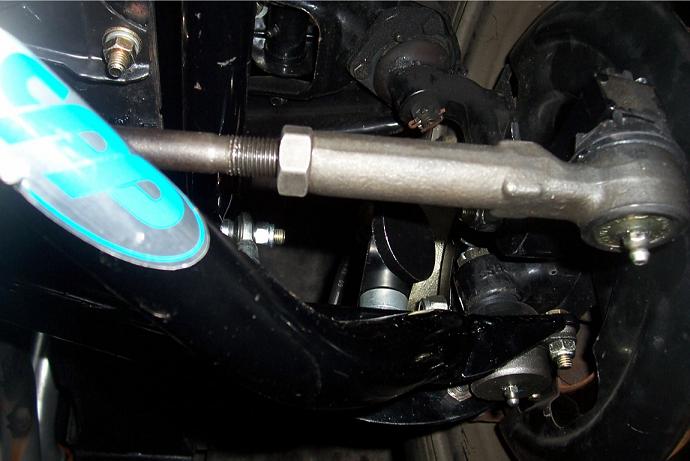

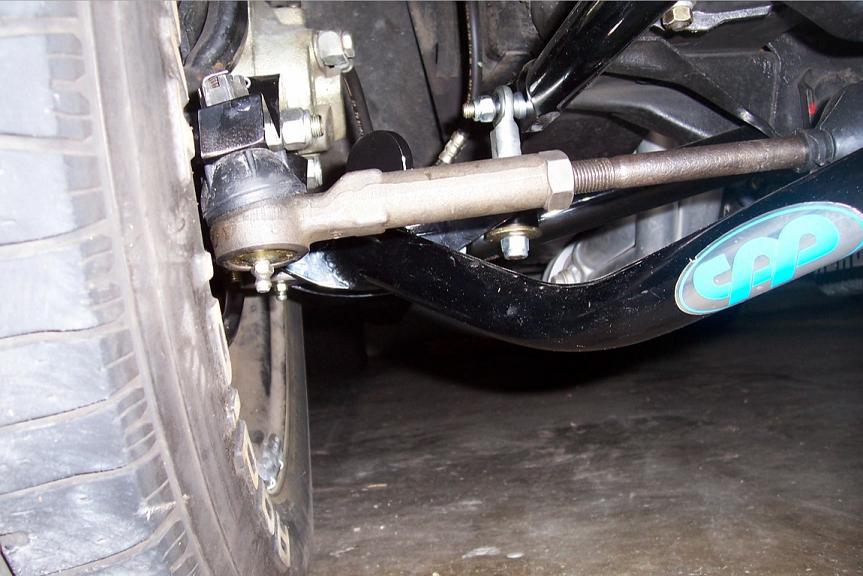

I put the end of the bolt facing connecting the sway bar out so as to never get close to hitting the frame.

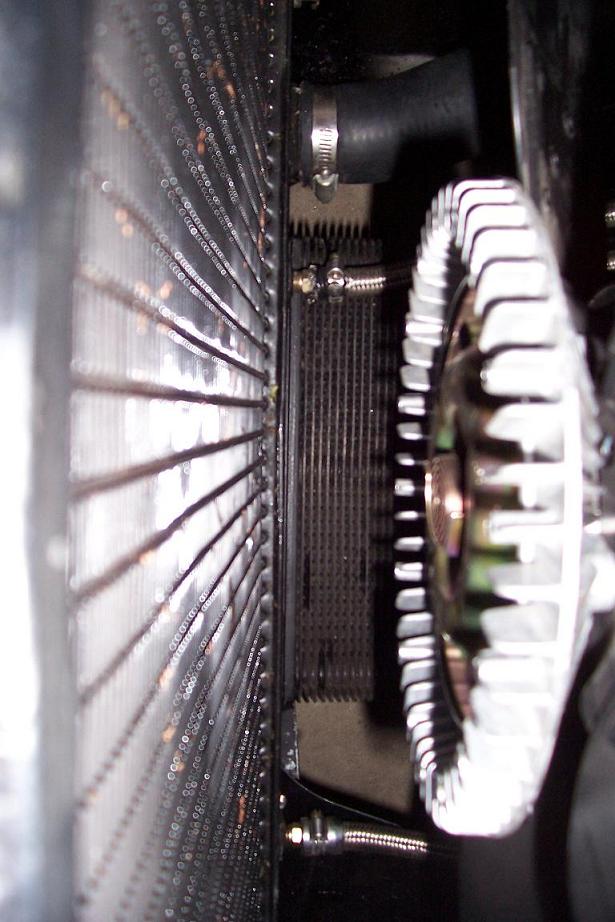

Trans cooler from top, It still fits after changing the front mounting brackets.

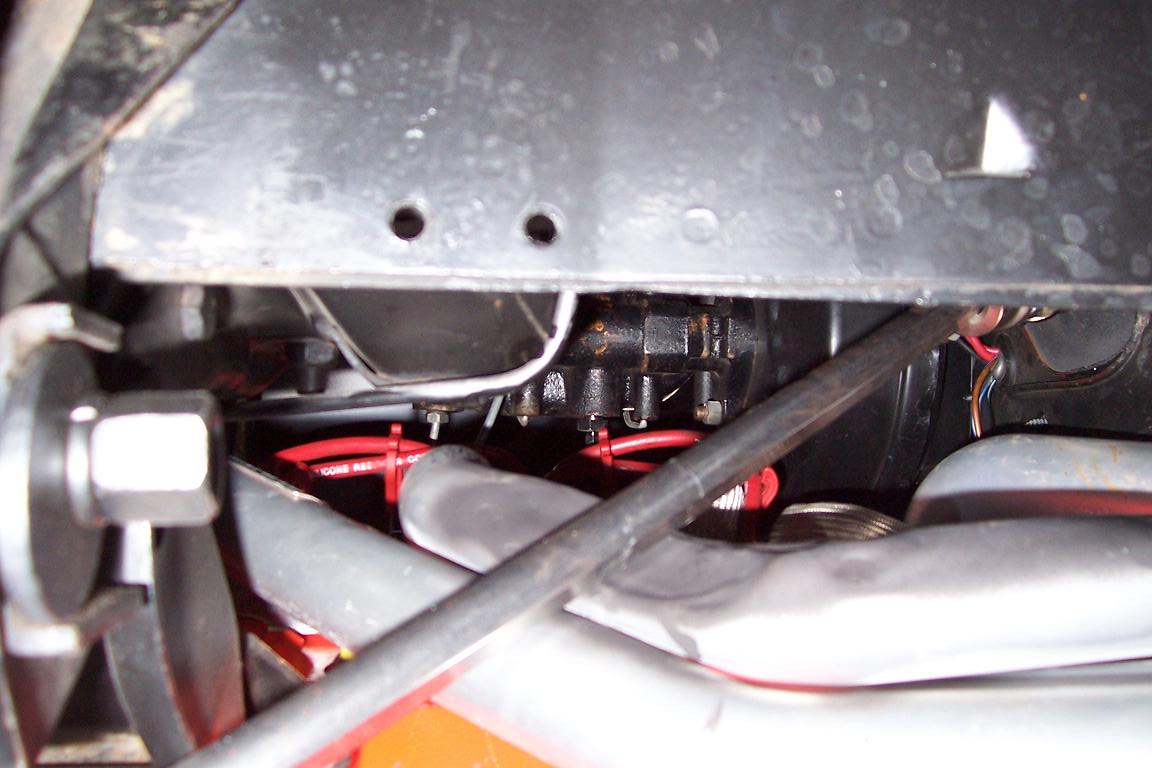

Older, Clearance added to header.  #3 pipe adjustment (Before I added the extension)  Sad, I know but I plan on new headers eventually.  These have been through many changes and mock ups.  Picture taken from underneath the car.


I finally replaced these headers after I got the steering column worked out.  I will get some new pictures eventually.

Happy Motoring, VHubbard.  June 2009
